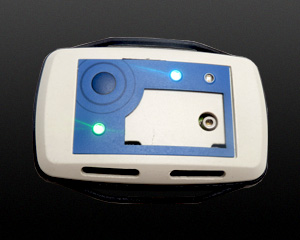

A compact wireless Environmental measurement unit especially designed for Smart Cities.

The ECOsense measures:

• Carbon monoxide (CO)
• Nitrogen oxide (NOx)
• Noise
• Temperature
• Humidity

ECOsense has been designed t measure typical values in cities. Please note that it is not calibrated for the moment.

ECOsense is:

• Compatible with the widest variety of platforms (mobile phones, PCs, etc) and operating systems
• Easy to use and integrate with existing systems
• Low powered
• Capable of communicating anywhere in real-time or store data

Sensors used: MICS4514, Sensirion SHT11, Noise 30 - 140 db

Communication: Bluetooth Class 2 radio with range up to 30m in free air, GPS (optional) Mediatek chip with patch antenna

Processor: TI MSP430

Battery: 3.7 V Lithium ion battery rechargeable via mini USB connector

Storage: 2GB or 4GB SD Card

Dimensions: 50 x 80 x 20 mm (W x L x H)

Weight: 66g

Measurement range: CO = 1 to 1000 ppm, NOx = 0.05 to 5 ppm, Noise = 30 to 140 db, Humidity = 0 to 100% RH, Temperature = -40 to +125°C (-40 – +257°F)

Data management: Data can be stored locally (SD Card) or sent to a distant server. Data can be exported using CSV or RSS format.

ECOsense user guide (pdf)

Ecosense sheet

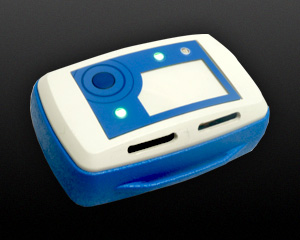

A compact wireless CO₂ measurement unit containing a non-dispersive infrared sensor.

This sensor is pre-calibrated and is highly precise.

The ECO₂sense measures:

• Carbon dioxide (CO₂)

ECO₂sense is:

• Compatible with the widest variety of platforms (mobile phones, PCs, etc) and operating systems
• Easy to use and integrate with existing systems
• Low powered
• Capable of communicating anywhere in real-time or store data

Sensors used: ELT S100

Communication: Bluetooth Class 2 radio with range up to 30m in free air, GPS (optional) Mediatek chip with patch antenna

Processor: TI MSP430

Battery: 3.7 V Lithium ion battery rechargeable via mini USB connector

Storage: 2GB or 4GB SD Card

Dimensions: 50 x 80 x 35 mm (W x L x H)

Weight: 92g

Measurement range: CO₂ = 0 to 5000 ppm

Data management: Data can be stored locally (SD Card) or sent to a distant server. Data can be exported using CSV or RSS format.

ECOsense user guide (pdf)

Eco2sense sheet

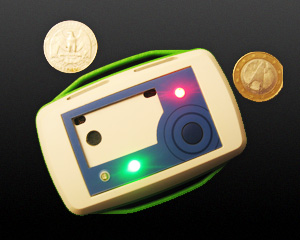

A compact wireless O₃ measurement unit containing relative luminosity, humidity and temperature for accurate measurement.

The EcO₃sense measures:

• Ozone (O₃)
• Luminosity (UVA, UVB, UVC)
• Temperature
• Humidity

EcO₃sense is:

• Compatible with the widest variety of platforms (mobile phones, PCs, etc) and operating systems
• Easy to use and integrate with existing systems
• Low powered
• Capable of communicating anywhere in real-time or store data

Sensors used: e2V MICS 2610, Sensirion SHT11, SG Lux (AG38S)

Communication: Bluetooth Class 2 radio with range up to 30m in free air, GPS (optional) Mediatek chip with patch antenna

Processor: TI MSP430

Battery: 3.7 V Lithium ion battery rechargeable via mini USB connector

Storage: 2GB or 4GB SD Card

Dimensions: 50 x 80 x 20 mm (W x L x H)

Weight: 66g

Measurement range: O₃ = 10 to 10000 ppb, UVA+UVB+UVC = 220 to 370 nm, Humidity = 0 to 100% RH, Temperature = -40 to +125°C (-40 – +257°F)

Data management: Data can be stored locally (SD Card) or sent to a distant server. Data can be exported using CSV or RSS format.

ECOsense user guide (pdf)

Eco3sense sheet

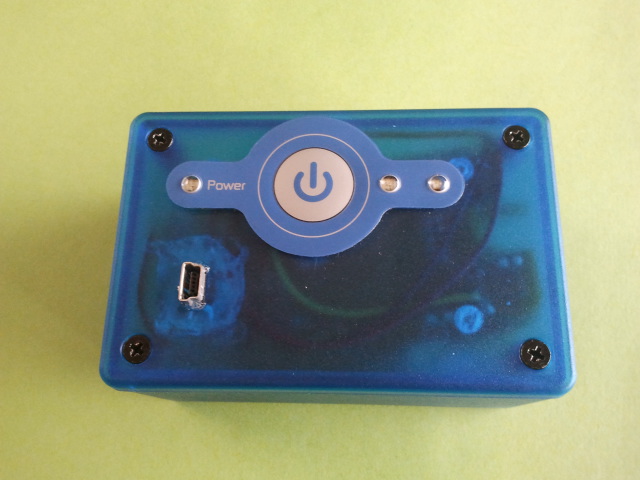

A compact wireless PM measurement unit taking into account particles bigger than 1µ.

Measures are expressed in µg/m³ or as a percentage. Moving average of the last 30 seconds are transmitted every second.

EcoPM is:

• Compatible with the widest variety of platforms (mobile phones, PCs, etc) and operating systems
• Easy to use and integrate with existing systems
• Low powered
• Capable of communicating anywhere in real-time or store data

Sensors used: Shinyei

Communication: Bluetooth Class 2 radio with range up to 30m in free air

Processor: TI MSP430

Battery: 3.7 V Lithium ion battery rechargeable via mini USB connector

Storage: 2GB or 4GB SD Card

Dimensions: 75 x 97 x 46 mm (W x L x H)

Weight: 133g

Measurement range: particles size = minimum 1µ

Data management: Data can be stored locally (SD Card) or sent to a distant server. Data can be exported using CSV or RSS format.

Senspods user guide (pdf)

PM Sheet

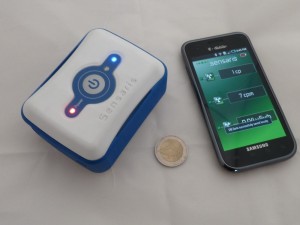

A compact wireless Geiger counter, capable of measuring alpha, beta and gamma rays.

Our RemPod measures:

• Radiations (alpha, beta and gamma)

RemPod is:

• Compatible with the widest variety of platforms (mobile phones, PCs, etc) and operating systems
• Easy to use and integrate with existing systems
• Low powered
• Capable of communicating anywhere in real-time or store data

Sensors used: LND 712

Communication: Bluetooth Class 2 radio with range up to 30m in free air, GPS (optional) Mediatek chip with patch antenna

Processor: TI MSP430

Battery: 3.7 V Lithium ion battery rechargeable via mini USB connector

Storage: 2GB or 4GB SD Card

Dimensions: 75 x 97 x 46 mm (W x L x H)

Weight: 112g

Measurement range: Alpha, Beta and Gamma rays = 18 CPS/mR/hr

Data management: Data can be stored locally (SD Card) or sent to a distant server. Data can be exported using CSV or RSS format.

ECOsense user guide (pdf)
